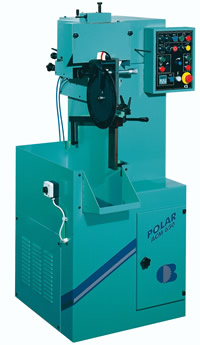

POLAR ACM 650
Automatic chamfering machine for HSS
and segmental circular saw blades for
chamfering of tooth form Aw, Bw and C,
DIN 1840

SPECIAL FEATURES

  • Chamfering of tooth form Aw, Bw or C in one pass grinding
  • Easy operation with short set-up times
  • Optimum time utilization in the operating cycle: rapid movement of grinding head into position giving way to slow grinding stroke
  • Electronically controlled machine
  • Manual dressing device for grinding wheel
  • Free and easy set-up of clearance angle
  • Automatic shutdown on completion of operation
  • Simple of maintenance

OPTIONS

  • Fully recirculating coolant system


TECHNICAL DATA

Saw blade diameter :
Maximum tooth pitch form Aw, Bw :
Maximum tooth pitch form C :
Maximum saw blade thickness :
Maximum grinding wheel diameter :
Chamfering speed (electronically controlled) :
Grinding wheel speed :
Air pressure :
Air consumption :
Installed power :
Net weight :
Overall dimensions :

mm 120 - 650
mm 30
mm 16
mm 8
mm 150
Zähne/min 40-70
U/min 3500
bar 6
l/min 10
KW 1,7
kg 300
mm740x900x1580

We reserve the right to make modifications
